The sleep apnea meter is a device for testing and analyzing patients with Obstructive Sleep Apnea Hypopnea Syndrome (OSAHS). It can detect physiological parameters such as nasal respiratory airflow, thoracic-abdominal respiratory movement, SpO2, pulse rate, body position, etc. The stored cases can be uploaded to the computer by the USB cable for analysis, which assists medical personnel in evaluating patients’ sleep quality and provides a basis for the medical personnel to formulate a diagnosis and treatment plan for the patients with sleep-breathing diseases.
Function
1) SpO2 data acquisition
2) Pulse rate data acquisition
3) Nasal airflow collection.
4) Thoracic and abdominal breathing acquisition
5) Body position signal acquisition
6)Low-battery indication.
7) Working state indication.
8) Multi-case storage function.
9)Data upload.
10) PC analysis software.
Performance
SpO2 measurement range: 0 % ~ 100 % (resolution: 1%)
Accuracy:
70 % ~ 100 %, ± 2 %;
0 % ~ 69 %, unspecified
PR measurement range: 30 bpm ~ 250 bpm (resolution: 1 bpm)
Accuracy: ± 2 bpm or ± 2%, whichever is greater.
Accuracy under low perfusion: low perfusion 0.4%; SpO2 accuracy: ± 4%; PR accuracy: ± 2 bpm or ± 2%, whichever is greater.
Light interference: compare the values measured in normal condition and ambient light condition; the deviation is ≤ 1%.
Nasal airflow measurement range: 0 bpm ~ 40 bpm (resolution: 1 bpm)
Accuracy: ± 2 bpm
Thoracic and abdominal breathing measurement range: : 0 bpm ~ 40 bpm (resolution: 1 bpm)
Accuracy: ± 2 bpm
Body position: prone, supine, left lateral, right lateral, upright and handstand positions

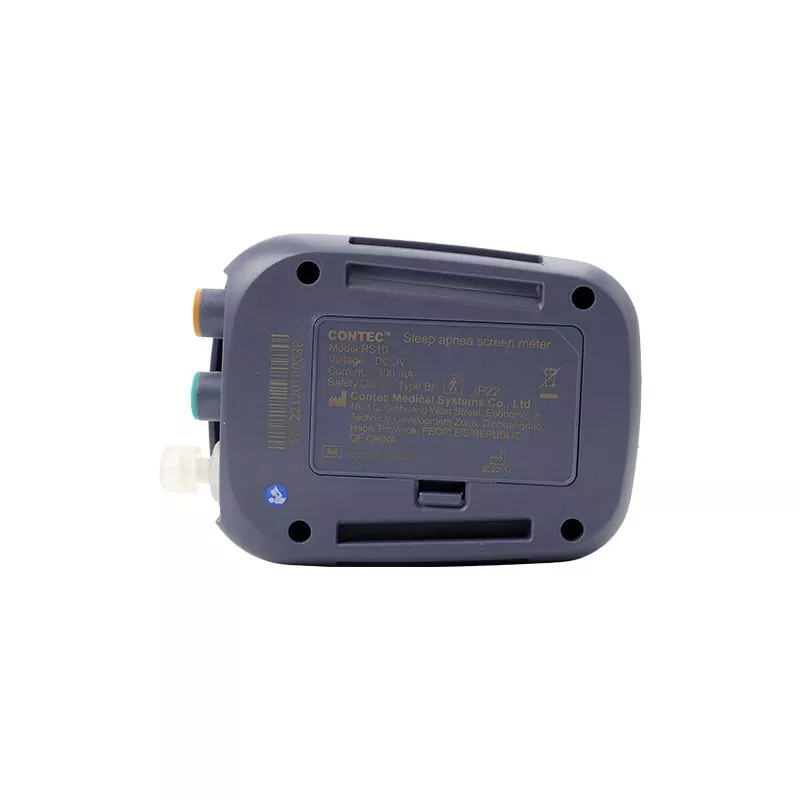

Power consumption: ≤ 100 mA
Working voltage: DC 3 V
Battery: two AA alkaline batteries
Safety class: internally powered equipment, type BF applied part

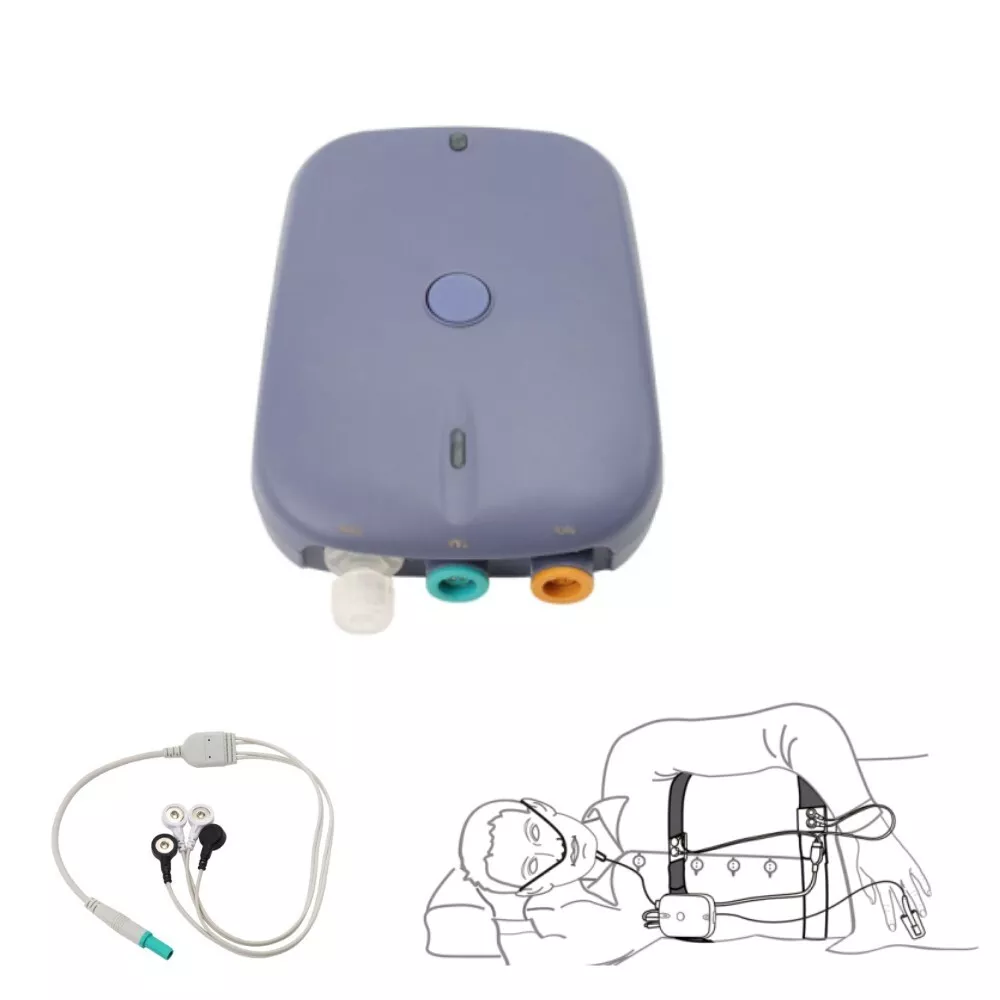

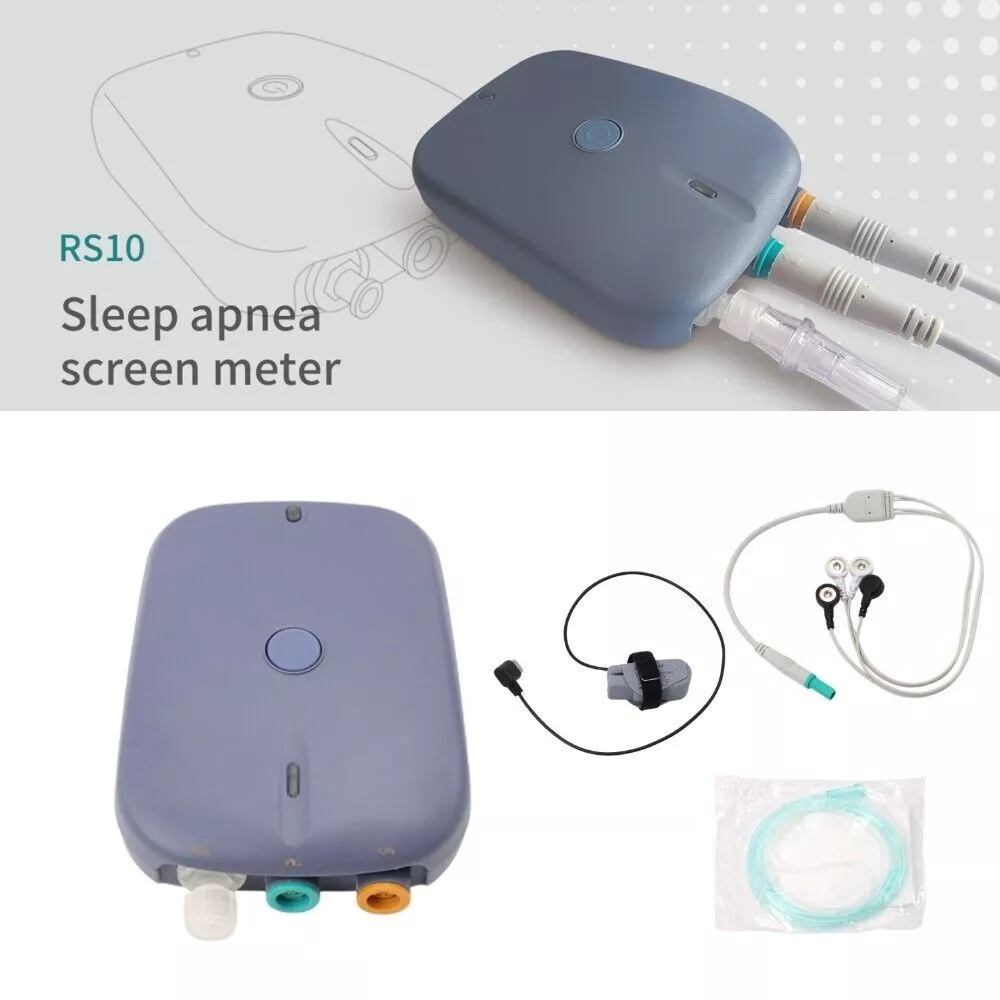

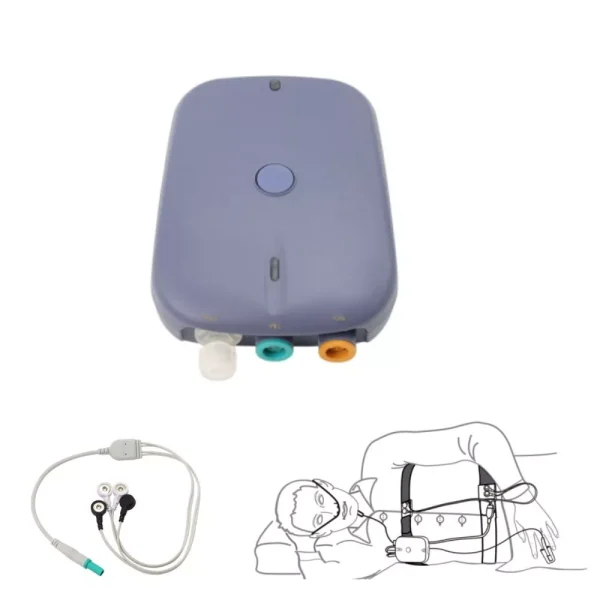

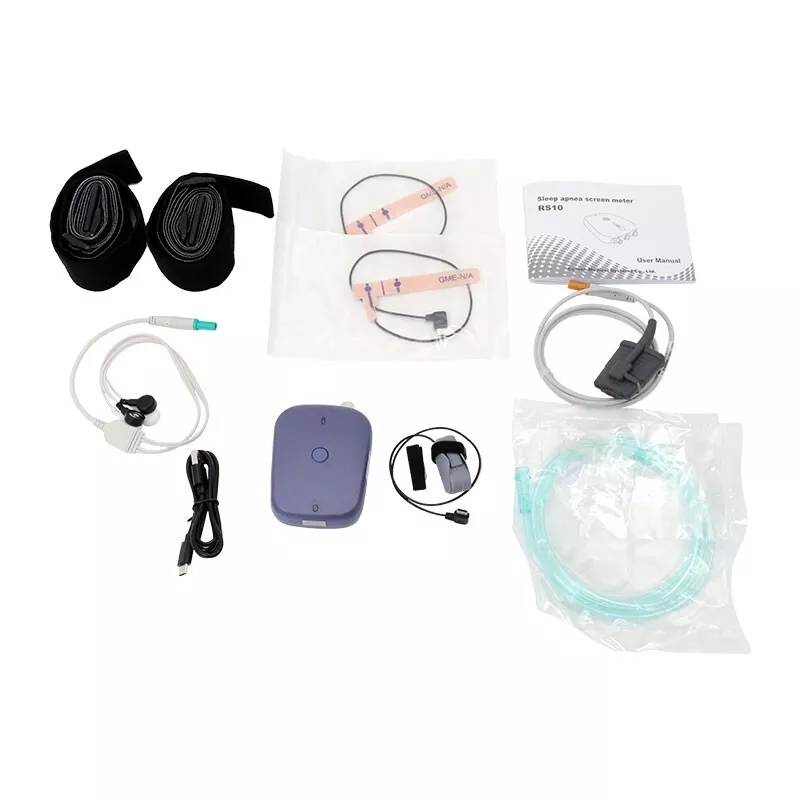

Accessories
One nasal oxygen cannula
One SpO2 probe
Two thoracoabdominal sensors
One thoracoabdminal lead
One Luer male taper
One User Manual
One USB cable
Physical characteristic
Dimension: 100 mm (L) × 74 mm (W)×28 mm (H)
Weight: about 80 g (no battery)
